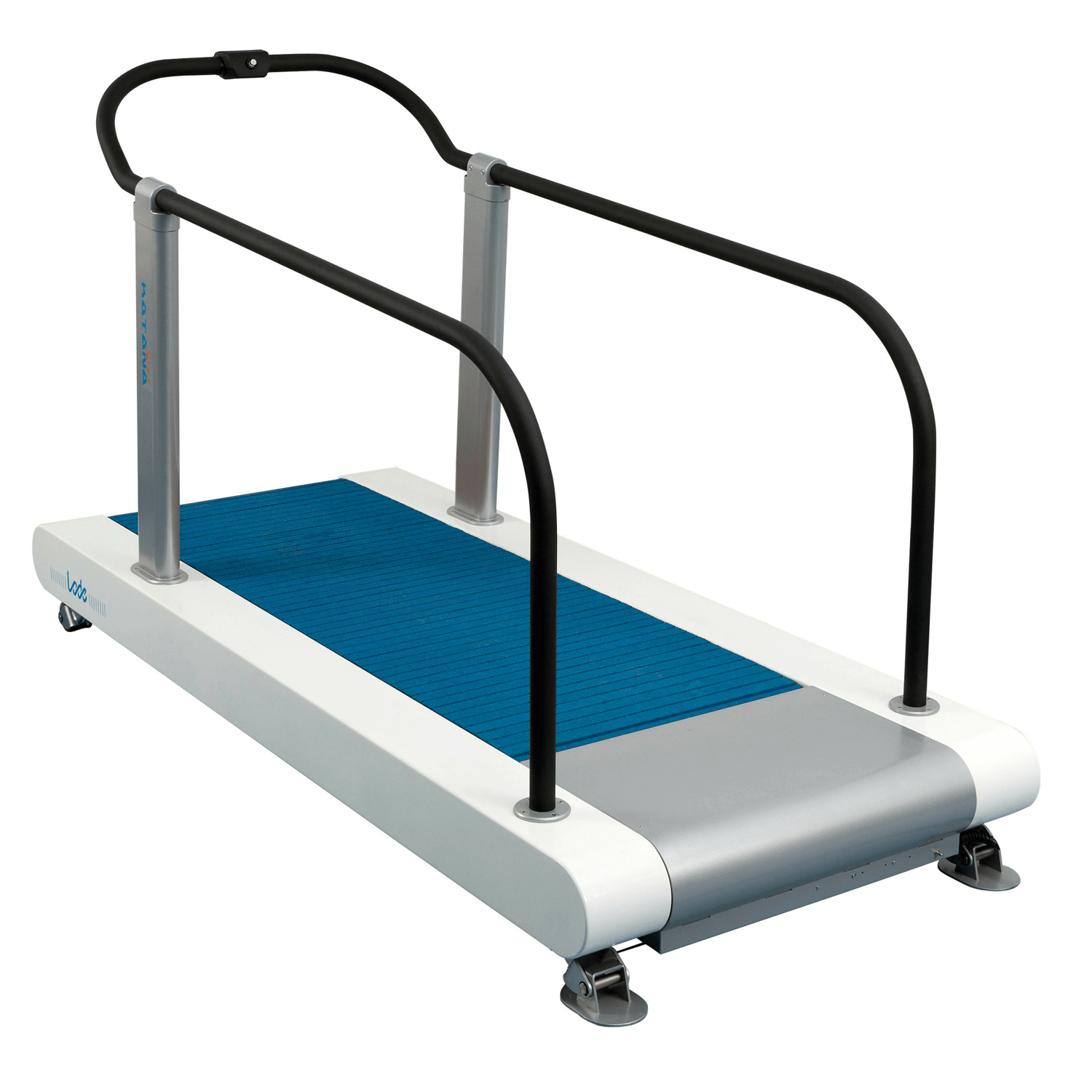

Katana sport

The Katana sport is a modern and reliable treadmill that can be connected to external ECG- and pulmonary devices as well as to a Lode software network (LEM or LCRM). The Lode Katana sport offers smooth acceleration and is continuously adjustable in a range of 0,5 – 30 km/h. The walking surface of 190 x 70 cm and elevation of 0 – 25%, make this treadmill the perfect solution for use in sport medical settings. The treadmill is equipped with a 7″ Control Unit with Touchscreen and fixed side handrails. The treadmill is executed with a special Lode Slat Technology with 106 soft grip covered slats that allows for high speed and a natural walking and running treadmill experience. Its Unique bearing technology delivers high speeds at low noise levels while needing low maintenance.

  • Speed: 0.1 – 30 km
  • Speed adjustment step: 0.1 km
  • Positive elevation: 25 %
  • Elevation adjustment steps: 0.1 %
  • Optional negative elevation: -25 %
  • Speed accuracy:  0.5 km
  • Elevation readout accuracy: 0.3 %
  • Maximum user weight: 225 kg
  • Screen resolution: 800x 400 pixels
  • Walking surface length: 190 cm
  • Walking surface width: 70 cm
  • Step up height: 29 cm
  • Size: 250 x 106 x 145 cm (LxWxH)
  • Product weight: 350 kg
  • Maximum rated power input: 5000 VA power input
  • Maximum motor power: 3.1 kWPower cord 3L+N+PE
    3 x 400 V
Contact Sales Representative
Brochure Fallstopp Guide Product Manual

Katana sport Highlights

  •  The Katana Sport treadmill can be controlled by all external stress test ECG and ergospirometry devices through the RS232 or USB port. This is possible because besides the programmed Lode protocol, all known commUnication protocols are programmed as well.
  • The standard maximum speed of the treadmill is 30 km/h
  • Smooth acceleration. All Lode’s treadmills have a smooth acceleration from 0 km/h to the start speed.
  •  The slat-belt technology provides a Unique walking experience which approaches the feeling of running on a track
  • Shock absorbing design. The design guarantees shock absorption with preservation of the natural walking feeling.

Katana Sport Features

  • Katana Sport is designed to withstand continuous heavy use by subjects in most weights and sizes. With standard safety lanyard to enable automatic emergency stop.
  • Various interface protocols guarantee perfect communication with all commonly known stress ECG and spirometry equipment and the speed of the treadmill can be adjusted in the smallest steps of only 0.1 km/h. The positive elevation of the treadmill is 25%. This slope is enough for protocols used for the normal and healthy test subjects. Other elevations are available on request.
  • Service friendly belt treadmill because of the unique impregnated belt, no belt-greasing and no bearing-greasing are required. The belt is centered automatically without additional adjustment. The only annual maintenance that has to be done is checking the running and electrical parts and the velocity calibration of the treadmill.
  • Closed loop motor control enables, full great at zero speed, load independent speed, angle independent speed and rigid speed control at all speeds, typically at interest when using steep angles, low speeds and/or high Test Subject weight.
  • Application specific motor winding, enabling high current throughput over full motor frequency range, resulting in high torque at low belt speeds and maximum power at high belt speeds. State-of-the-art variable frequency drive for efficient and precise motor control over full motor frequency range.
  • 10 years service – This product can be serviced for 10 years after phase-out
