Top-of-the-range activity monitor
The ActiGraph GT9X Link captures and records high resolution human activity information using a solid state 3-axis MEMS accelerometer and our proprietary filtering algorithm. The GT9X Link is our most sophisticated activity monitor and represents a significant upgrade from previous models. Building on our validated physical activity and sleep measurement platform, it has been redesigned with a rich set of new features along with multiple new channels of sensor data captured by gyroscope, magnetometer and secondary accelerometer. High resolution LCD screen, Bluetooth® for wireless data capture and uploads to ActiGraph’s mobile applications makes GTX9 Link the most versatile and user-friendly activity monitor in our range. It is fully backward compatible with previous device models to ensure data comparability for our existing clients.
Dimensions: 3.5 x 3.5 x 1 cm
Weight: 14 grams
Sample rate: 30-100 Hertz
Battery life: 14 days*
Memory: 4GB
Data storage: 180 days
Dynamic range (primary accelerometer): +/- 8G
IMU sample rate: 100 Hertz
Gyroscope dynamic range: +/- 2000 deg/sec
Dynamic range (secondary accelerometer): +/- 16G
Magnetometer dynamic range: +/- 4800 micro-Tesla
Communication: USB, Bluetooth® LE
Water resistance: IP27 1 meter, 30 min.
Wear location: Wrist, waist, ankle, thigh
*Wireless disabled, 30 Hz sample rate, IMU disabled, sleep mode.

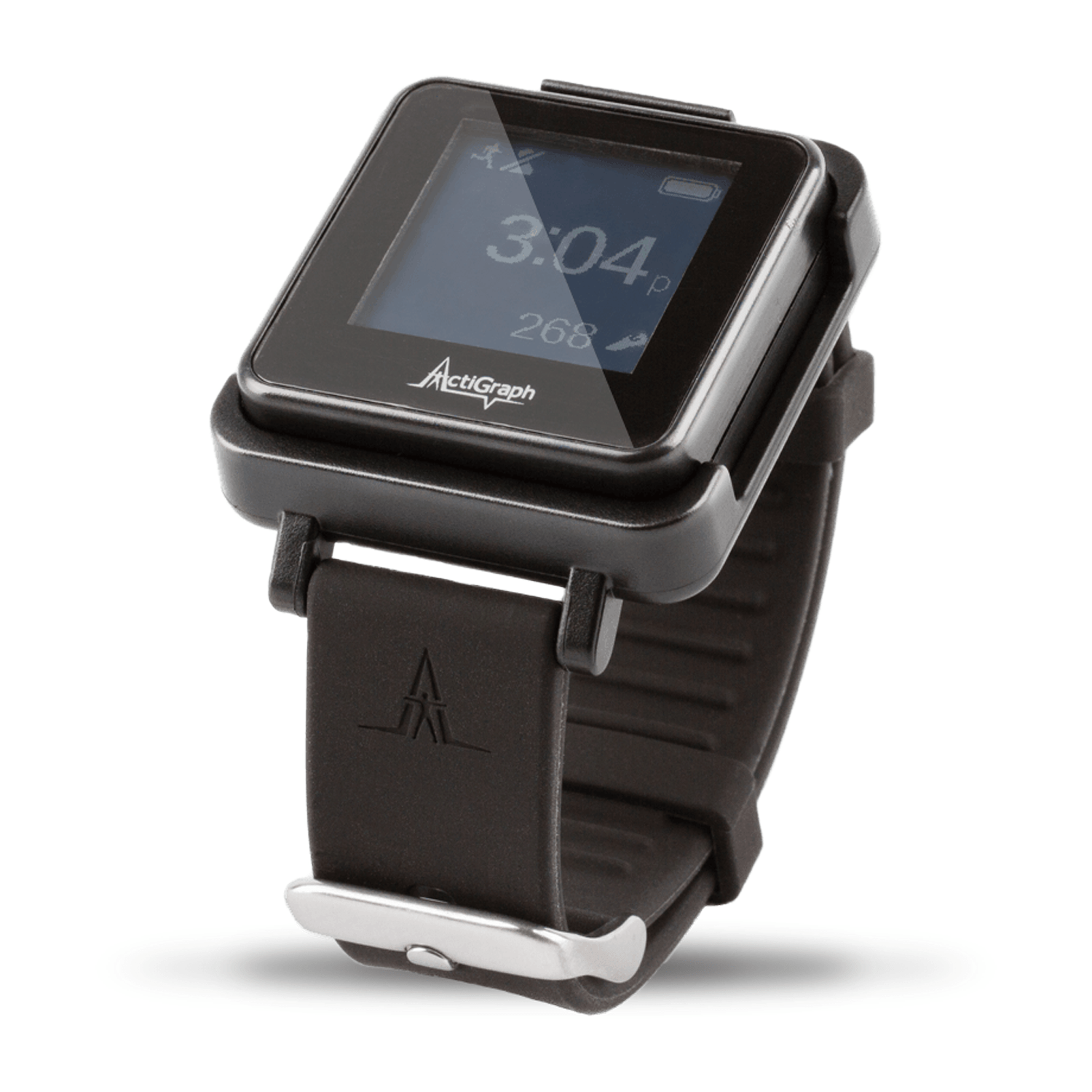

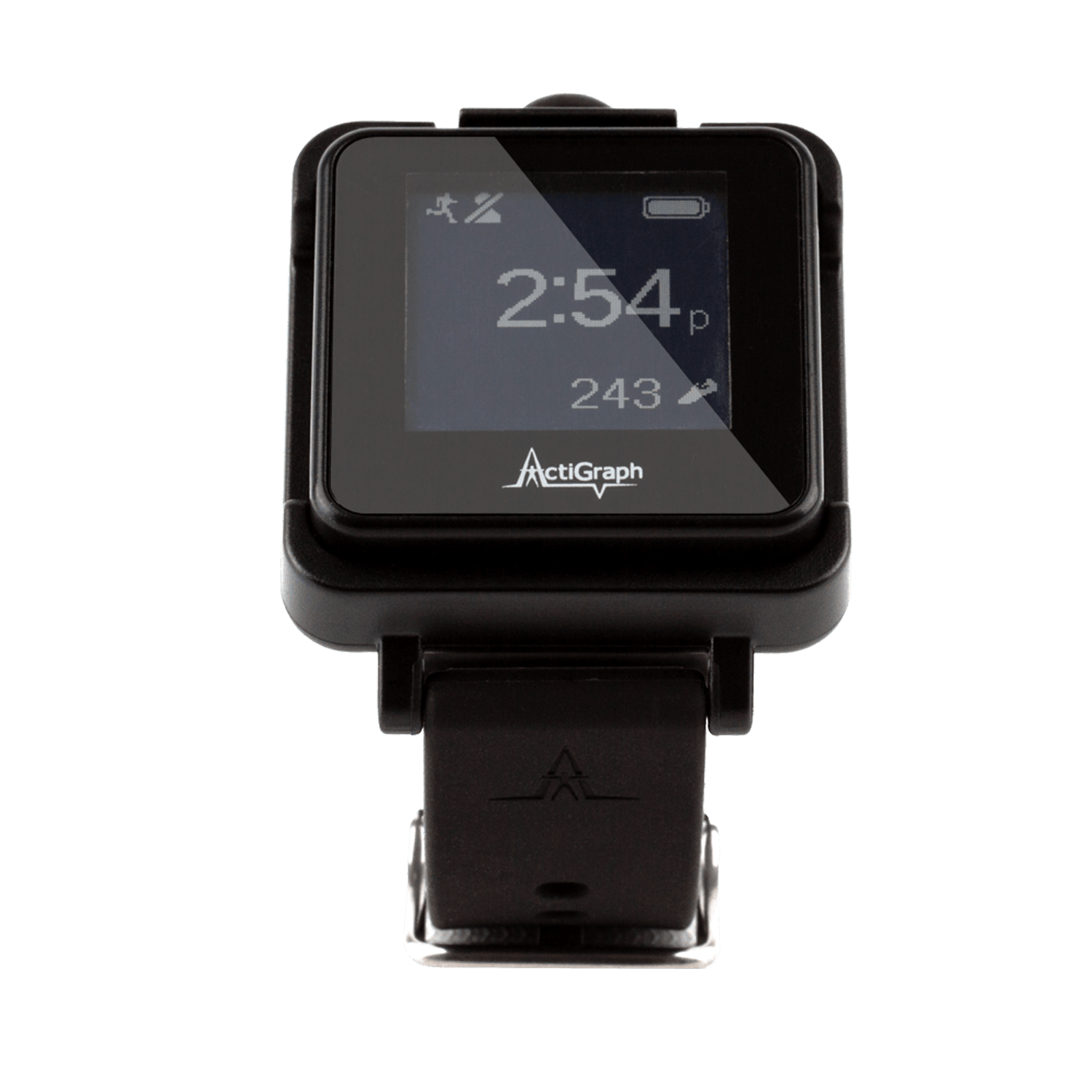

The redesigned ActiGraph GT9X Link features ActiGraph’s validated 3-axis accelerometer and data filtering technology with a sleek, low-profile case and high-resolution liquid crystal display (LCD) window for optional real-time subject feedback. The Bluetooth® Smart ActiGraph GT9X Link includes a gyroscope, magnetometer, and secondary accelerometer to deliver valuable information about movement, rotation, and body position.
Programmable Display
The ActiGraph GT9X Link features a programmable LCD window that can be configured to display date and time and/or provide real-time activity feedback such as steps and kcals, or it can be completely disabled. An integrated IMU containing a gyroscope, magnetometer, and secondary 3-axis accelerometer sensors provides raw position and rotational data for a variety of advanced applications, including inclination, gait analysis, and fall detection*. An advanced wear time sensor on the back of the device uses capacitive touch technology to automatically detect when a wrist worn device has been removed for simplified compliance monitoring and data cleaning.
Bluetooth® Smart
The ActiGraph GT9X Link is powered by Bluetooth® Smart technology and offers a variety of wireless features, including heart rate monitoring, proximity detection, and communication with ActiGraph’s suite of mobile applications for iOs and Android devices.
* ActiGraph products are not intended to diagnose, treat, cure, or prevent any disease.
The ActiGraph GT9X Link captures and records high resolution raw acceleration data, which is converted into a variety of objective activity and sleep measures using publicly available algorithms developed and validated by members of the academic research community. Available measures include:
*Requires compatible Bluetooth® Polar H7 or Polar H10 heart rate monitors
Service is essential to keep medical equipment operational and safe. Our Nordic service team consists of experienced service technicians stationed across the Nordic countries. Our service technicians are ready to take on your every service need.”
Meeting the needs of both medical staff and patient
The Vivo 65 is designed to meet the needs both of medical staff and a wide range of patients. It combines comfortable and controllable ventilation with excellent monitoring capabilities to potentially reduce readmissions to acute care facilities.
The Vivo 65 is an advanced homecare ventilator designed to deliver secure and comfortable (life-support) treatment to adult and pediatric patients from 5 kg. The Vivo 65 can be used for a wide variety of patients thanks to a comprehensive set of modes, circuits and accessories.
The dual limb circuit allows for measurement of exhaled volumes providing additional security. The extensive moni- toring capabilities help obtain a better insight into the quality of ventilation. The Vivo 65 is an excellent choice for mechanical ventilation at home, in the hospital and in long- term care facilities. The Vivo 65 is prepared for connection to Breas cloud solutions.
The power of ONE – Vyntus ONE is our innovative pulmonary function system equipped with an ultrasonic sensor.
Vyntus ONE is incredibly capable with a modular design that possesses an impressive array of features. Your Vyntus ONE can even grow later on together with your needs delivering high performance and utility in a single package. It is even able to be extended to also measure cardiopulmonary exercise tests with the same module.
It is designed to make your tests more accurate, less intrusive and less stressful for patients.
For all essential spirometry testing
The modular JAEGER Vyntus™ PNEUMO belongs to the Vyntus Family and is combinable with Vyntus APS for bronchial challenge testing and/or Vyntus IOS Impulse Oscillometry for measuring central and peripheral airway resistance.
Use your Vyntus Pneumo for all of the essential spirometry testing: Flow/Volume-loop (FVC), Slow Vital Capacity (SVC), Maximum Voluntary Ventilation (MVV), Pre and Post medication testing or therapy control.
Optionally, Vyntus Pneumo allows expanding your diagnostic possibilities with measurements like Rocc, P0.1, Pmax, SNIP, rhinomanometry and compliance. Vyntus Pneumo is enhanced by the workflow- and quality-driven SentrySuite™ Software.
The reliable, proven, accurate, heated Jaeger pneumotach has been selected as the measurement device of choice in hundreds of publications. Its excellent dynamic range allows for testing a broad population, from small children to athletes. Thousands of PFT labs profit daily from its high performance.
Vyntus™ SPIRO PC Spirometer
The Vyntus™ SPIRO was born out of Vyaire’s obsession to perfect a spirometer that is easy-to-use and has the flexibility to provide accurate results for both the general user and sophisticated lab. Stationary or portable PC spirometer as a stand-alone device or as part of the SentrySuite network.
Thousands of PFT labs depend every day on Vyaire’s proven, accurate and reliable JAEGERTMpneumotach. For hundreds of publications, the JAEGER pneumotach was the device of choice.
Its excellent dynamic range effectively tests a broad population from small children to athletes.
Datasheet
